S&W Continuity Phase Lap
Winding Method advantage:
Save
labor costs
Motor runs cooler
Saves 10% copper
Eliminate separators
Decrease resistance
Cut winding time by 40%
Improves efficiency, power factor and
motor life
Increase productivity,turnover time and
as a result increases profits
Phase Heads S/W 500-00 and S/W 500-0---------------------Fractional H.P
Phase Heads S/W No.1 thru 5------------------------------- 1/2 H.P to 50 H.P
Phase Heads S/W No.506 ----------------------------------- 50 H.P to 100 H.P
Phase Heads S/W No.507 ----------------------------------- 75 H.P to 150 H.P
Phase Heads S/W No.508 ---------------------------------- 125 H.P to 500 H.P
No phone orders. P.O by fax or E-mail only.
A 4% Credit Card processing fee will be added to applicable orders.
|
Model # |
Description |
Price- US.
Dollars |
Packing &
Handling |
Weight |
|
Domestic |
Export |
|

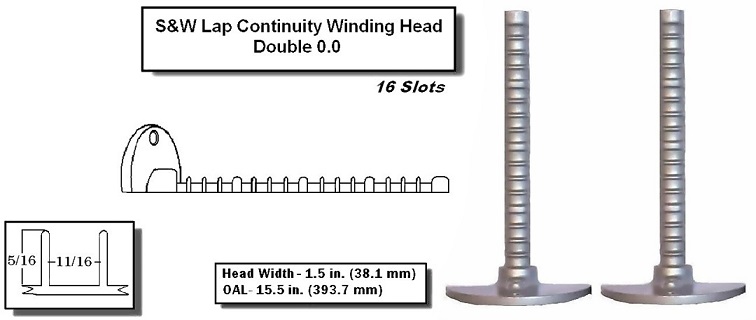

SW-500-00 |
Lap Continuity Head 16 Slots - 1.5 in.
(38.1 mm) Head Width - OAL 15.5 in. (393.7 mm) |
$715.00 |
$20.00 |
$20.00 |
5.0
Lbs |
|

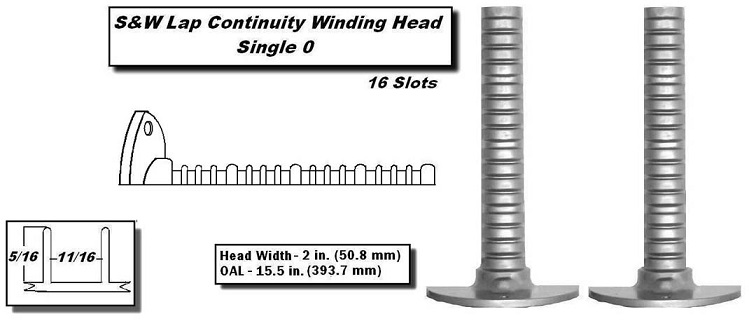

SW-500-0 |
Lap Continuity Head 16 Slots - 2 in.
(50.8 mm) Head Width - OAL 15.5 in. (393.7 mm) |
$726.00 |
$20.00 |
$20.00 |
6.5
Lbs |
|

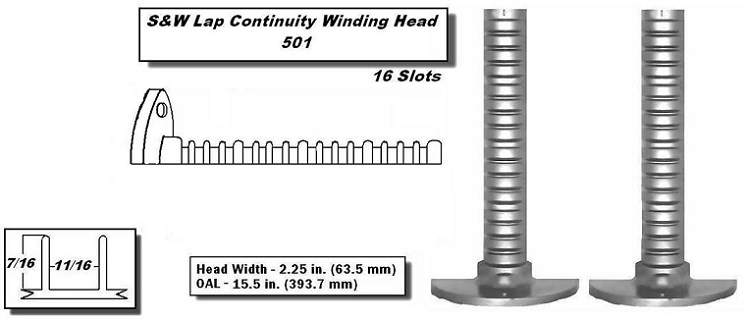

SW-501 |
Lap Continuity Head 16 Slots - 2.25
in. (63.5 mm) Head Width - OAL 15.5 in. (393.7 mm) |
$770.00 |
$20.00 |
$20.00 |
7.0 Lbs |
|

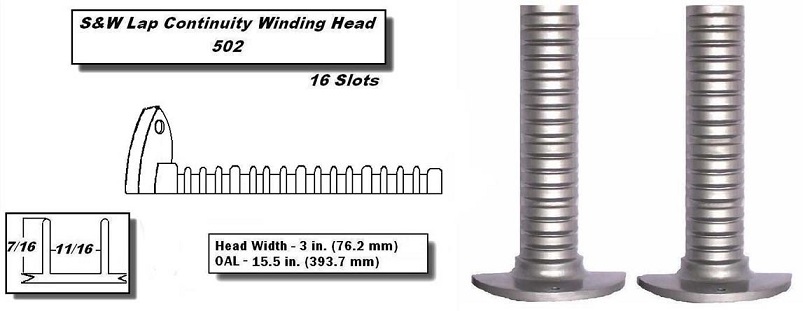

SW-502 |
Lap Continuity Head 16 Slots - 3 in.
(76.2 mm) Head Width - OAL 15.5 in. (393.7 mm) |
$853.00 |
$20.00 |
$20.00 |
8.5 Lbs |
|

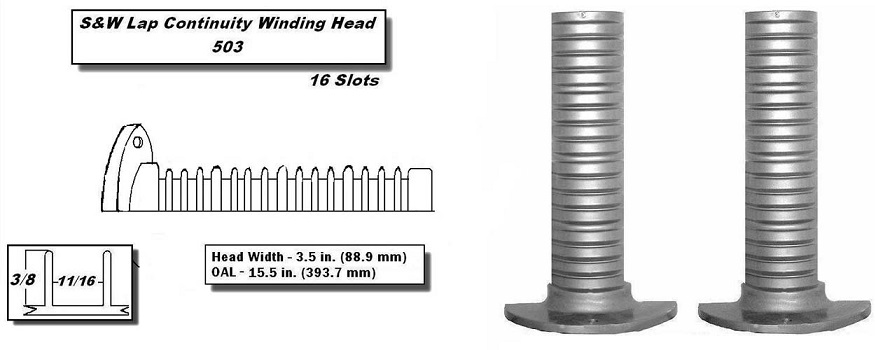

SW-503 |
Lap Continuity Head 16 Slots - 3.5 in.
(88.9 mm) Head Width - OAL 15.5 in. (393.7 mm) |
$880.00 |
$20.00 |
$20.00 |
9.0 Lbs |
|

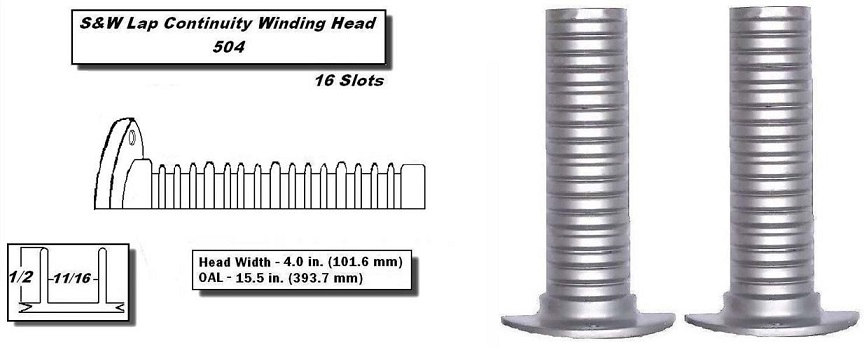

SW-504 |
Lap Continuity Head 16 Slots - 4.0 in.
(101.6 mm) Head Width - OAL 15.5 in. (393.7 mm) |
$1,155.00 |
$20.00 |
$20.00 |
10 Lbs |
|

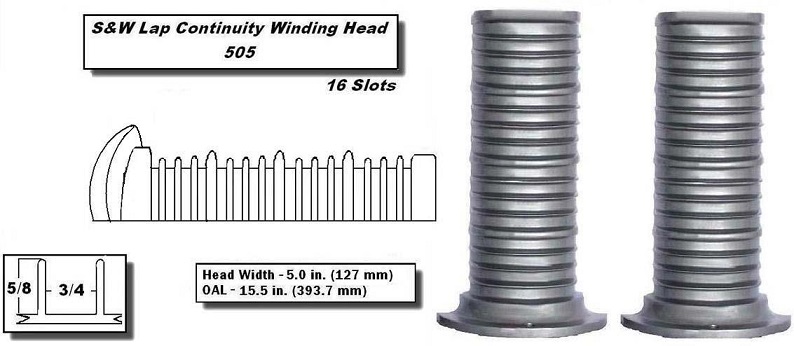

SW-505 |
Lap Continuity Head 16 Slots - 5.0 in.
(127 mm) Head Width - OAL 15.5 in. (393.7 mm) |
$1,238.00 |
$20.00 |
$20.00 |
15 Lbs |
|

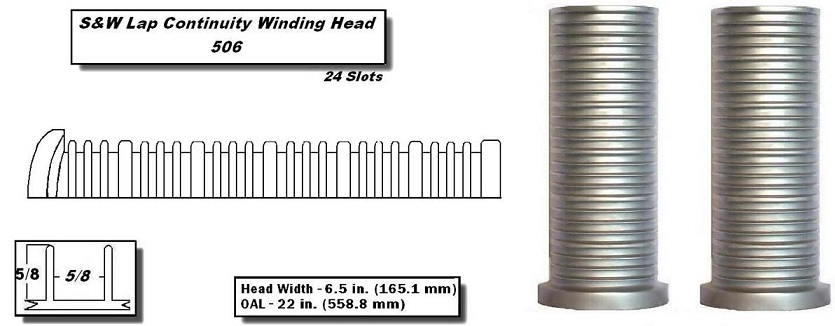

SW-506 |
Lap Continuity Head 24 Slots - 6.5 in.
(165.1 mm) Head Width - OAL 22 in. (558.8 mm) |
$1,733.00 |
$83.00 |
$133.00 |
60 Lbs |
|

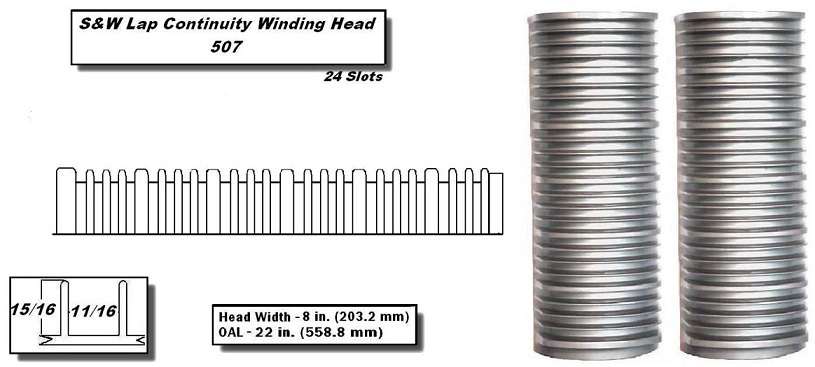

SW-507 |
Lap Continuity Head 24 Slots - 8 in.
(203.2 mm) Head Width - OAL 22 in. (558.8 mm) |
$2,228.00 |
$103.00 |
$155.00 |
90 Lbs |
|

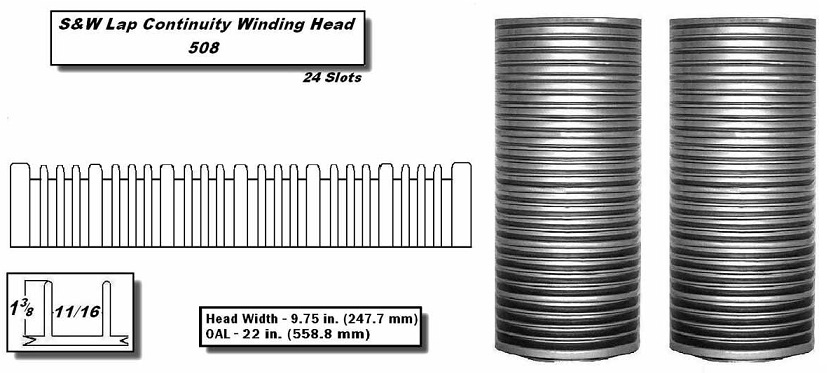

SW-508 |
Lap Continuity Head 24 Slots - 9.75
in. (247.7 mm) Head Width - OAL 22 in. (558.8 mm) |
$2,926.00 |
$103.00 |
$155.00 |
110 Lbs |
|
SW-550-1-5 |
(1-5) Lap Continuity Heads |
$4,406.00 |
$83.00 |
$133.00 |
- Lbs |
|
SW-550-6-8 |
(6-8) Lap Continuity Heads |
$6,573.00 |
$103.00 |
$155.00 |
- Lbs |
|

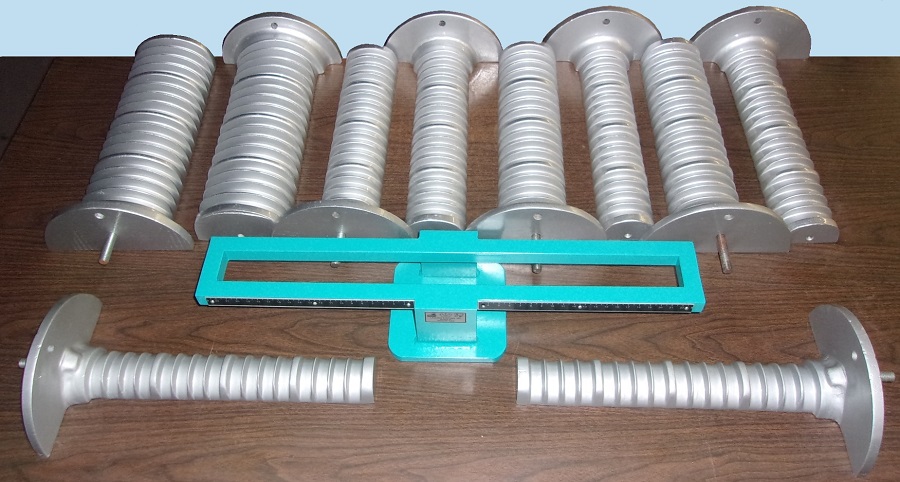

SW-599 |
All 10 sizes (00-8) Lap Continuity Heads on a
pallet in a box. |
$11,880.00 |
- |
- |
- Lbs |
Note: * Spreader bar (LA-HDSB) required if Tension Device is used.
